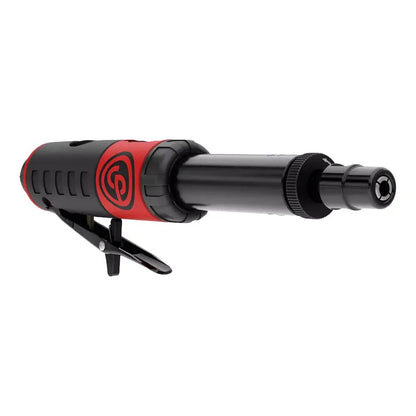

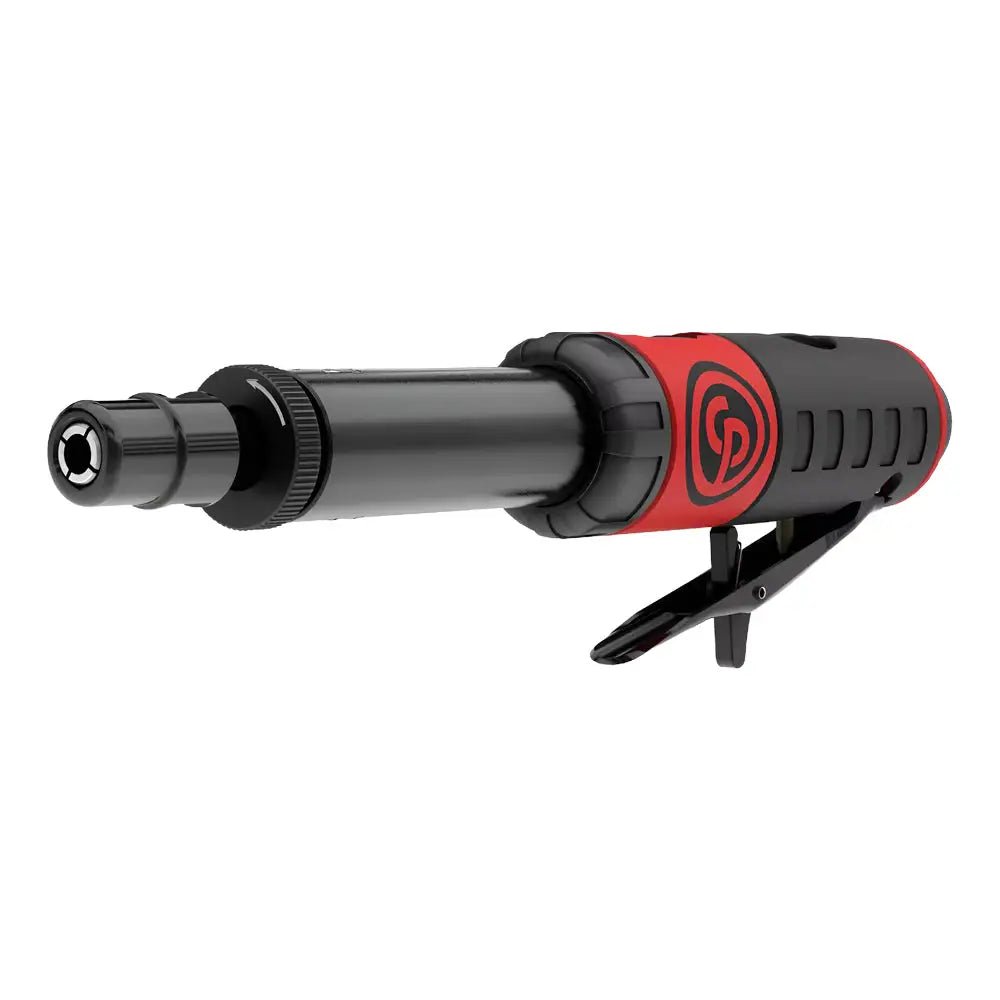

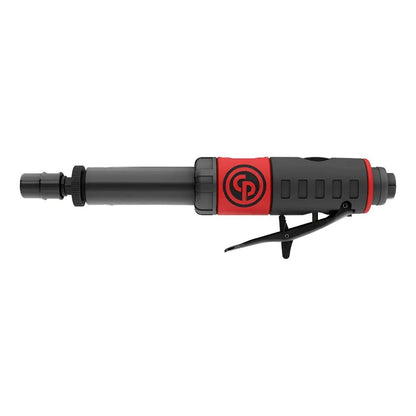

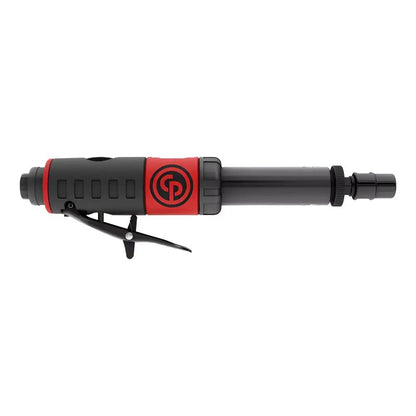

CP CP7410 Straight 9.8" Extended Die Grinder, 0.34HP, 27000 RPM, 1/4" Inlet
Extended Die Grinder Reaches Where Others Can't - Chicago Pneumatic CP7410
Professional 9.8" Straight Air Die Grinder with 27,000 RPM Power
When standard die grinders leave you struggling to reach tight spaces, this extended die grinder solves the problem. The CP7410's 9.8-inch length gives you the reach needed for deep recesses, narrow channels, and awkward angles that shorter tools simply can't access. Perfect for auto body work, MRO tasks, and fabrication where precision matters most.
Key Features and Benefits
Extended Reach Access - The 9.8-inch straight body design lets you grind, deburr, and shape in deep housings, behind brackets, and inside confined spaces where standard tools won't fit. You'll love how easily it reaches those impossible angles.
One-Wrench Accessory Changes - Spindle lock system eliminates the need for two wrenches when changing burrs, cutting discs, or sanding accessories, saving time and reducing frustration during busy work sessions. Ideal when you need quick tool changes.
Reduced Heat and Fatigue - Composite housing with helical bevel gears keeps the tool cooler in your hands while minimizing vibration, allowing longer work periods without discomfort. Perfect when working on extended projects.
Applications
Ideal when you need precision grinding in confined spaces. You'll love how this extended die grinder reaches areas that standard tools simply cannot access:
- Auto body panel grinding and weld cleanup inside door frames
- MRO work on equipment housings and confined machinery spaces
- Fabrication deburring in deep channels and narrow slots
- Surface preparation behind brackets and structural components
- Precision grinding on castings and complex metal shapes
Specifications
| Model Number | CP7410 |
|---|---|
| Tool Type | Straight Extended Air Die Grinder |
| Length | 9.8 inches (248mm) |
| Free Speed | 27,000 RPM |
| Power Output | 0.34 HP (250W) |
| Air Inlet Size | 1/4 inch NPT |
| Collet Capacity | 1/4 inch (6.4mm) |
| Air Consumption | 2.1 CFM at load |
| Weight | 1.43 lbs (0.65kg) |
| Housing Material | Composite with TPR Grip |
| Sound Level | 76.1 dB(A) pressure |
Get Professional Extended Die Grinder Performance
Stop struggling with short tools that can't reach where you need to work. The CP7410 extended die grinder gives you the length, power, and precision to handle any grinding task efficiently. With its spindle lock system and composite housing, you'll work faster and more comfortably.
Order Your Extended Die Grinder NowFrequently Asked Questions
How does this compare to shorter die grinders?
The CP7410's 9.8-inch length provides nearly 4 inches more reach than standard die grinders, allowing access to deep recesses and confined spaces. While maintaining the same 27,000 RPM speed and 0.34 HP power, it offers superior versatility for tight-space applications without sacrificing performance.
What air compressor size do I need for this extended die grinder?
You'll need a compressor that delivers at least 2.1 CFM at 90 PSI for optimal performance. Most shop compressors rated 20 gallons or larger will handle this tool easily. Use a minimum 3/8-inch air hose for best results.
Can I use standard 1/4-inch shank accessories?
Yes, the CP7410 accepts all standard 1/4-inch shank carbide burrs, cutting discs, sanding drums, and other rotary accessories. The spindle lock system makes changing between different accessories quick and easy with just one wrench.
Is this extended air die grinder suitable for heavy-duty work?
Absolutely. The helical bevel gear design and composite housing are built for demanding shop environments. It handles steel, cast iron, aluminum, and other materials effectively, making it ideal for automotive, MRO, and fabrication applications.
