ROTARY | SMO14 | Four Post Lift | Open Front Lift

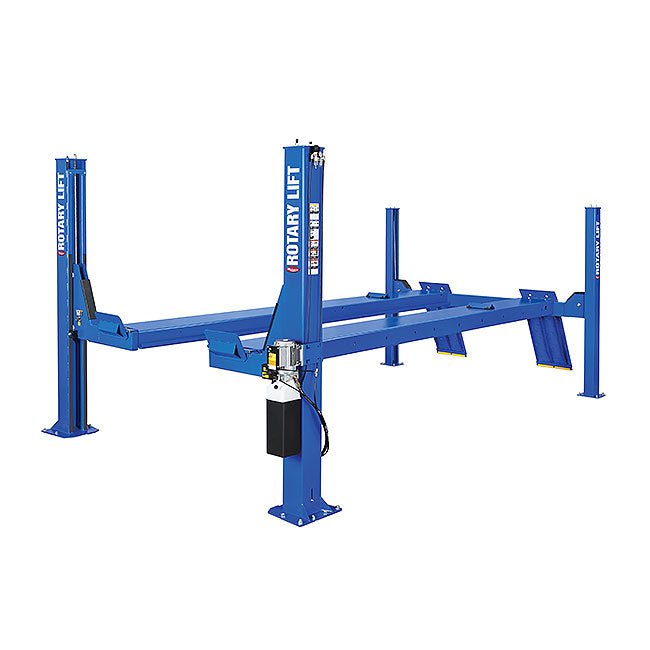

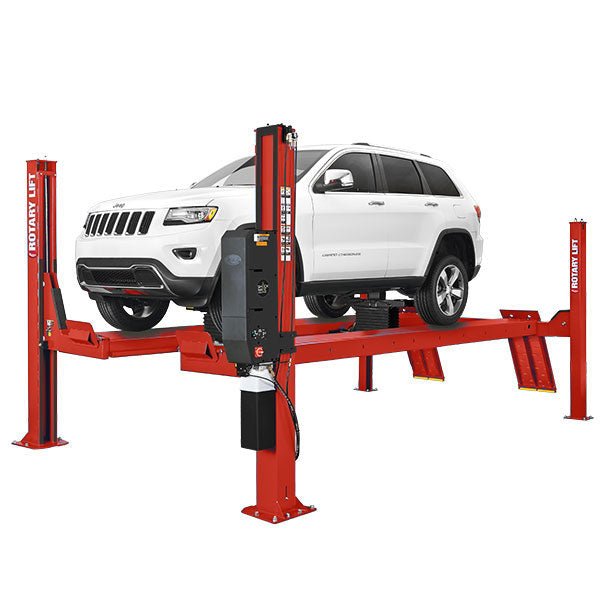

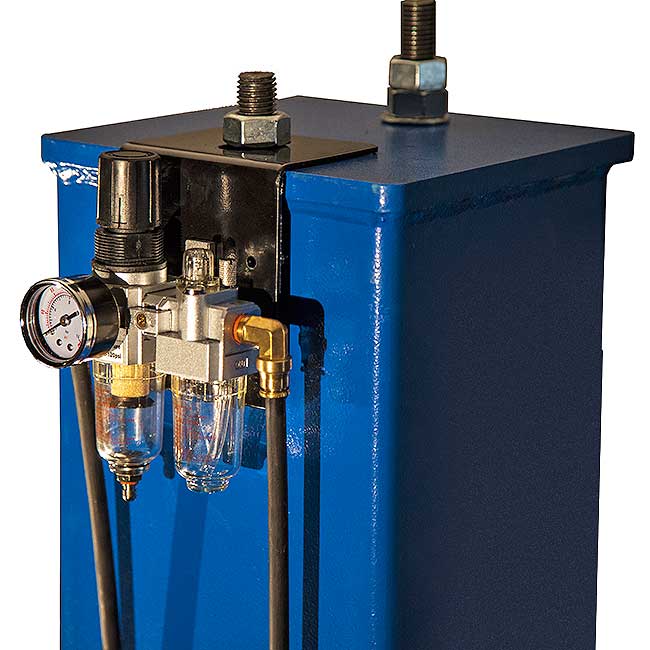

Versatility is the standard to which Rotary Lift’s four-post lifts are built. These lifts handle cars, vans, trucks, and even light to medium-duty commercial vehicles with ease. If you service a wide variety of vehicles, the Rotary SMO14 four-post auto lift is the right choice for maximum productivity. It features an open-end design, a cylinder located under the runway, a dual-function Sentinel Lock™ system, an air filter/regulator/lubricator, adjustable latch bars, and a single-piece, non-welded runway with tracks for rolling jacks.

SMO14 Features



SMO14 Specifications

Specification - SMO14 SMO14-L SMO14-EL SMO14SW-L SMO14SW-EL
Max. Wheelbase 182" 215" 182" 215"
Rise Height 78 3/4" 78 3/4" 78 3/4" 78 3/4"
Length Overall 21' 1" 23' 10" 22' 23' 8"
Width Overall 11' 8 1/2" 11' 8 1/2" 11' 8 1/2" 11' 8 1/2"
Inside of Columns 116 1/4" 116 1/4" 116 1/4" 116 1/4"
Between Front and Rear Columns 194 3/4" 227 3/4" 194 3/4" 227 3/4"
Height of Columns 9' 11/16" 9' 11/16" 9' 11/16" 9' 11/16"
Width of Runways 20" 20" 20" 20"
Height of Runways 7" 7" 7" 7"
Width Between Runways 43" 43" 43" 43"
Lifting Capacity 14,000 lbs. 14,000 lbs. 14,000 lbs. 14,000 lbs.
Motor 2 HP 2 HP 5 HP 5 HP
Voltage Single Phase 208v-230v 208v-230v 110V 110V
Time of Full Rise 65 seconds 65 seconds 35 seconds 35 seconds
Time of Full Descent - - 18 seconds 18 seconds
Min. Bay Size 15'x26' 15'x28' 15'x26' 15'x28'

Warranty

Limited Lift Warranty Statement
All VSG serialized and capital equipment is warranted to the original owner.

Warranty Information
Important: The warranty period begins once the lift is invoiced to an authorized Distributor/ Purchaser/ Account. This date can be adjusted by submitting the Warranty Activation Form indicating the installation date or by proof of purchase. The warranty period can only be adjusted for a period of 6 months after the original ship date unless approved by VSG Customer Service. VSG shall repair or replace those parts returned to the factory, which prove upon inspection to be defective, and pay for reasonable costs of transportation and/or labor for replacement of said parts for the warranty period as stated above. Items replaced under warranty will assume the warranty of the original item.

This warranty shall not apply unless the product is installed, operated, used, and maintained in accordance with specifications as set forth in installation, operation, and maintenance instructions. This warranty does not cover normal maintenance or adjustments, damage or malfunction caused by improper handling, installation, abuse, misuse, negligence, carelessness of operation, or normal wear and tear. In addition, this warranty does not cover equipment when unauthorized repairs or alterations have been attempted or made to the product.

To activate the first-year parts and labor warranty on Shockwave™, SmartLift®, Dual Control, One-Touch Control, VREX, EFX, Parallelogram, HDC, and MOD products, the installation shall be done by a Rotary Authorized Installer (RAI) and the product installation registered with the factory.

Model/Series Standard Warranty *** RAI Installation
Surface Lifts ≤ 30,000 LBS. Structural: 5 Years
Functional: 1 Year
Labor Warranty: 1 Year
Structural: 5 Years
Functional: 2 Years
Labor Warranty: 1 Year
Jacks Purchased with Alignment Lifts ≤ 30,000 LBS Structural: 5 Years
Functional: 1 Year
Labor Warranty: 1 Year
Structural: 5 Years
Functional: 2 Years
Labor Warranty: 1 Year
Scissor Lifts ≤ 14,000 LBS Structural: 1 Year Structural: 1 Year
MCH Mobile Columns Structural: 5 Years
Functional: 1 Year
Labor Warranty: 1 Year
Replacement Parts 90 Days 90 Days
Wheel Service Structural: 3 Years
Functional: 1 Year
Structural: 2 Years
Functional: 1 Year

Examples of Structural Parts: carriage, columns, yokes, arms, runways, plungers.
Examples of Functional Parts: power units, cylinders, latches, adapters, controls.

Exceptions: Mobile Columns - Rollers have Lifetime Functional Warranty, Cylinders have 5-Year Functional Warranty, Controls have 2-Year Functional Warranty.
Exclusions: Batteries (warrantied by battery manufacturer), Paint defects due to external influences (accidental damage, climatic, thermal, chemical, or industrial pollution), wear items (cables, sheaves, adapter pads, radius gages, rear steers, lights, etc.). Air-powered items damaged by external fluids & moisture.

Limitation of Liability:
The remedies described are exclusive and in no event shall VSG be liable for any special, consequential, or incidental damages of any kind, including damages for breach or delay in performance of the warranty. All remedies must be completed utilizing a VSG Authorized Installer.

This warranty is exclusive, and all other expressed or implied warranties, including merchantability or fitness for a particular purpose, are hereby expressly excluded. This warranty shall be governed under the laws of the State of Indiana and shall be subject to the exclusive jurisdiction of the Court in the State of Indiana in the County of Jefferson.
