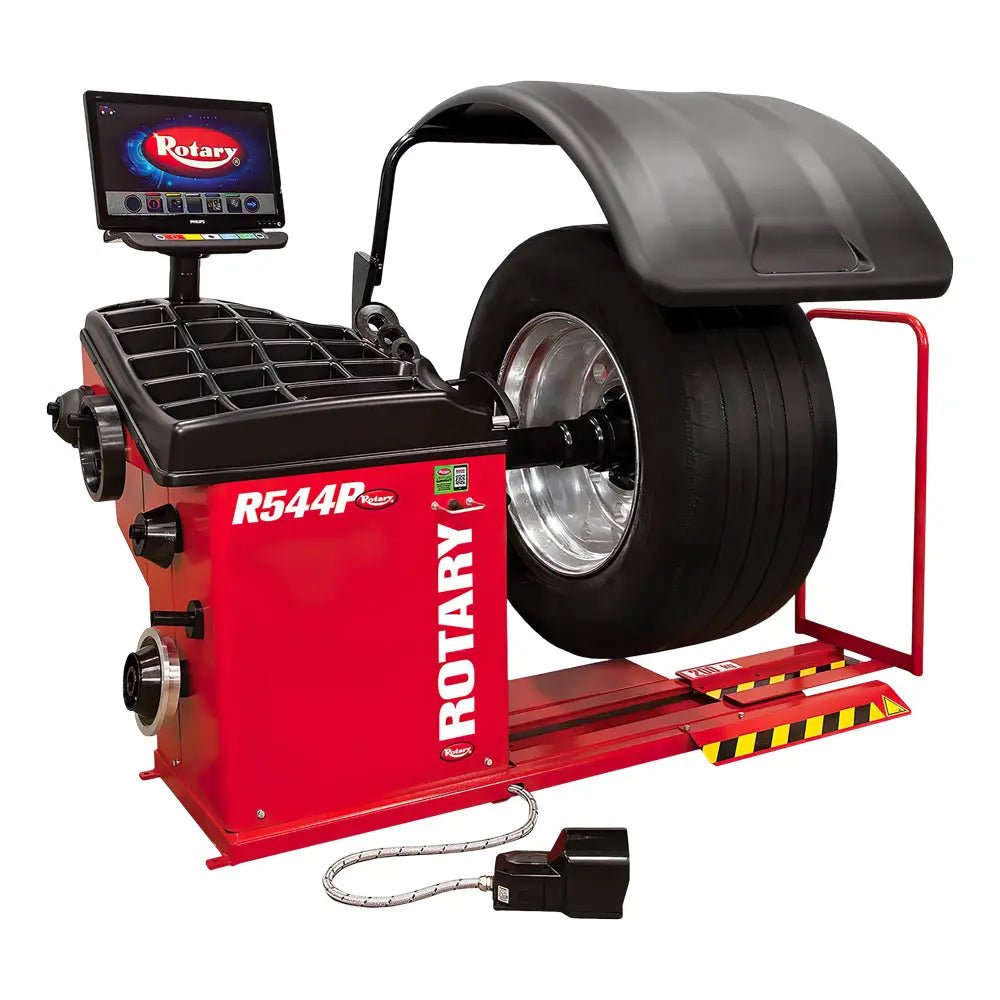

ROTARY | R544PLUS | Pro Truck 3D Wheel Balancer

The Rotary R544PLUS Pro Truck 3D Wheel Balancer is a versatile solution for automotive service centers, capable of handling a wide range of vehicles, from motorcycles to commercial trucks. Its advanced 3D technology ensures precise wheel balancing, enhancing vehicle performance and safety.

R544PLUS  Features

Equipment Included


Self-Calibration & Diagnostics

The R544Plus has a microprocessor for self- calibration and diagnostics. One single low rotation spin provides a readout of out-of- balance values and gives the related position on the wheel. The operator enters the wheel diameter and width automatically with the gauge.

Additional Equipment

Auto Lock-In Position

 The R544Plus features an automatic stop in the external, unbalanced position, automatic rotation to the internal side, and an automatic stop in the internal, unbalanced position.

Compatibility

3D Automatic Data Input

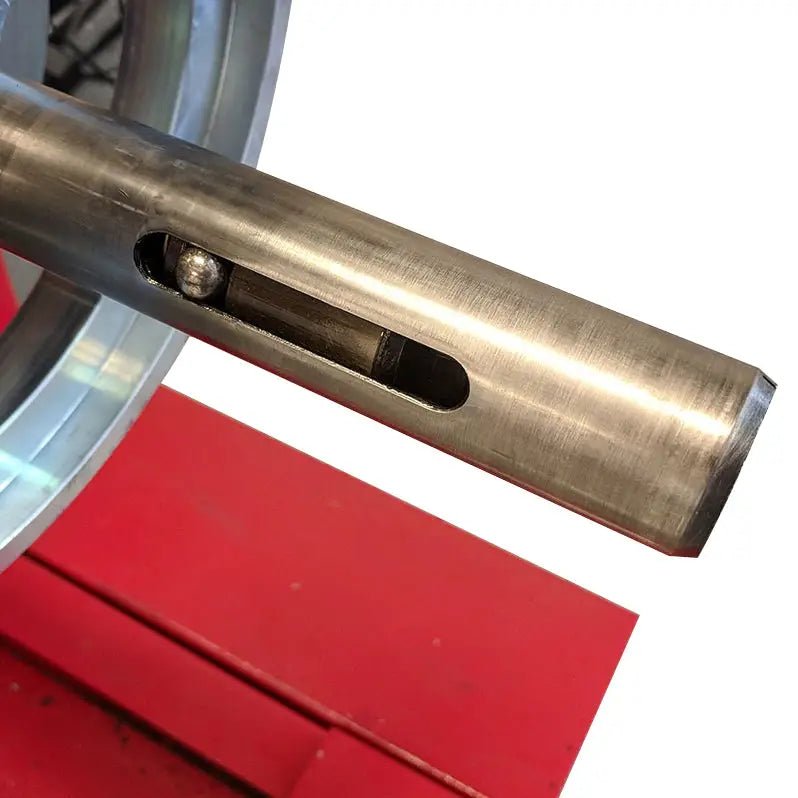

The R544-Plus features a digital caliper with an optical sensor and an alloy shaft with sliding bushings. It also has integrated LED lights with a laser and a GAR 266T width sensor.

R544PLUS  Specifications

Specification R544PLUS
Balancing Technology 3D Wheel Balancing
Wheel Types Heavy-Duty Truck Wheels
Rim Diameter Range 12” - 30”
Rim Width Range 4” - 20”
Maximum Wheel Weight 441 lbs (200 kg)
Measuring Speed 100 RPM
Balancing Precision ± 1 gram
Power Supply 230V / 1ph / 50-60 Hz
Motor Power 1.5 kW
Display High-Resolution Monitor
User Interface Intuitive Digital Touchpad
Weight Measurement Units Ounce/Gram
Cycle Time 10-15 Seconds
Features - Automatic Distance and Diameter Entry
- Smart 3D Digital Sensor Technology
- Static and Dynamic Balancing Options
- User-Friendly Operation
- Precision for Heavy-Duty Applications
Dimensions 60" x 48" x 70" (L x W x H)
Net Weight Approx. 800 lbs (362 kg)
