BENDPAK | HD-973P | Tri-Level Parking Lift | 9,000 and 7,000 lb Capacity
Maximize Your Space Instantly!
Imagine tripling your parking capacity without moving! The HD-973P isn't just a lift; it's a space revolution. This innovative parking solution lets you store three vehicles in the footprint of one, thanks to its unique, patent-pending design. With independently operated platforms, you get total control over vehicle height and access. Perfect for home garages or commercial spaces, this lift combines safety, strength, and smart engineering to make parking a breeze.
HD-973P Features & Benefits
Triple Parking
Store three vehicles in one space
Adjustable Heights
Independent platforms for custom vehicle spacing.
Low-Profile Fit
Designed for garages with limited headroom.
Secure Locking
Multi-position safety locks for reliable parking.

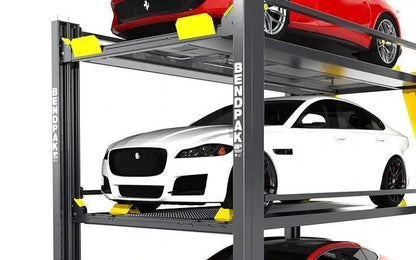

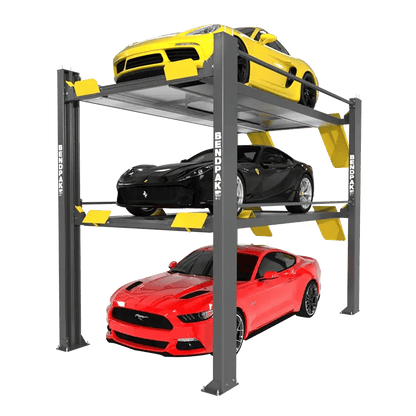

Triple Your Parking Space with Independent Platform Flexibility
Imagine transforming a single parking spot into space for three vehicles! The HD-973P's patent-pending design lets you do just that. What's more, its independently operated platforms mean you can adjust the height of each parked vehicle to your exact needs. No more struggling with fixed positions. Park sedans, SUVs, and even full-size trucks with ease, and access any vehicle without disturbing the others. This lift gives you ultimate control and maximizes your parking efficiency.

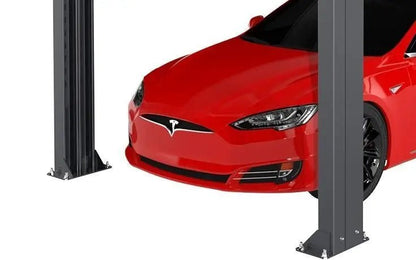

Space-Saving, Low-Profile Design for Versatile Installation
Tired of parking lifts that are too tall for your garage or shop? The HD-973P's uniquely engineered, shortened column design solves that problem. It fits into spaces with lower ceilings where traditional triple-stackers won't. Enjoy the convenience of a triple-level lift without sacrificing valuable headroom. Whether you're working in a residential garage or a commercial setting, this lift’s compact build ensures it can be installed virtually anywhere, even outdoors.
Unmatched Safety with Multi-Position Locks and Redundant Protection
Your peace of mind is paramount. The HD-973P is built with multi-position safety locks spaced every four inches, giving you precise height adjustments and secure parking. Plus, redundant, anti-fall, spring-loaded safety catches are in place to instantly stop any downward movement in the unlikely event of a cable failure. You can trust that your vehicles are safe and secure at all times.
Heavy-Duty Construction for Reliable, Long-Term Use
This lift is built to last. With a 9,000 lb capacity on the lower platform and 7,000 lb capacity on the upper platform, the HD-973P handles heavy loads with ease. Its rugged, welded-steel construction, heavy-duty 3/8” lifting cables, and wide base plate provide exceptional stability and durability. Enjoy years of reliable service without worrying about wear and tear.
Effortless Operation with Hydraulic Power and User-Friendly Controls
Operating the HD-973P is a breeze. The powerful hydraulic cylinders and simple push-button controls make lifting and lowering your vehicles smooth and effortless. The integrated hydraulic flow restrictor ensures a controlled descent, and the padded trip bar with limit switch prevents accidental contact between vehicles. Enjoy a seamless and intuitive parking experience.
Adaptable Configuration with Optional Drive-Thru and Rolling Jack Features
Tailor the HD-973P to your specific needs. The optional drive-thru ramps allow for efficient, flow-through parking, perfect for maximizing space in busy environments. And for added convenience during maintenance, the optional 4,500-lb air-hydraulic rolling jacks provide extra lifting power. This lift adapts to your workflow, making parking and servicing your vehicles more efficient.
HD-973P Specifications
| Specification | HD-973P |
|---|---|
| A - Overall Width | 112" (2,849 mm) |
| B - Height of Columns | 161" (4,093 mm) |
| C - Drive-Thru Clearance | 87" (2,201 mm) |
| D - Distance Between Columns | 100" (2,546 mm) |
| E - Runway Width | 19" (482 mm) |
| F - Width Between Runways | 44" (1,121 mm) |
| Motor | 220 VAC / 60 Hz / 1 Ph |
| Top Platform | |
| Lifting Capacity | 7,000 lbs (3,175 kg) |
| G - Overall Length (Includes Ramps) | 242" (6,139 mm) |
| H - Maximum Rise | 139.5" (3,544 mm) |
| I - Maximum Lifting Height | 144" (3,667 mm) |
| J - Length of Runways | 188.5" (4,786 mm) |
| Min. Wheelbase @ Capacity | 135" (3,429 mm) |
| Min. Wheelbase @ 75% Cap. | 115" (2,921 mm) |
| Min. Wheelbase @ 50% Cap. | 95" (2,413 mm) |
| Min. Wheelbase @ 25% Cap. | 80" (2,032 mm) |
| Bottom Platform | |
| Lifting Capacity | 9,000 lbs (4,082 kg) |
| G - Overall Length (Includes Ramps) | 200" (5,080 mm) |
| H - Maximum Rise | 70" (1,783 mm) |
| I - Maximum Lifting Height | 75" (1,906 mm) |
| J - Length of Runways | 176" (4,470 mm) |
| Min. Wheelbase @ Capacity | 125" (3,175 mm) |
| Min. Wheelbase @ 75% Cap. | 105" (2,921 mm) |
| Min. Wheelbase @ 50% Cap. | 85" (2,159 mm) |
| Min. Wheelbase @ 25% Cap. | 70" (1,778 mm) |
| Locking Positions | 31 |
| Lock Spacing | Every 4" (102 mm) |
| Lifting Time | 90 seconds |
HD-973P Documents
Concrete Floor Requirements for BendPak Lifts
BendPak lifts require a solid, level concrete foundation to ensure stability and safe operation. The concrete floor must meet certain minimum requirements for thickness and PSI rating.
Click here to learn more about BendPak lift concrete foundation requirements.
Compare Models of the HD-973P
| Specification | HD-973P | HD-973PX |
|---|---|---|
| Shared Specs | ||
| A - Overall Width | 112" (2,849 mm) | 112" (2,849 mm) |
| B - Height of Columns | 161" (4,093 mm) | 173" (4,398 mm) |
| C - Drive-Thru Clearance | 87" (2,201 mm) | 87" (2,201 mm) |
| D - Distance Between Columns | 100" (2,546 mm) | 100" (2,546 mm) |
| E - Runway Width | 19" (482 mm) | 19" (482 mm) |
| F - Width Between Runways | 44" (1,121 mm) | 44" (1,121 mm) |
| Motor | 220 VAC / 60 Hz / 1 Ph | 220 VAC / 60 Hz / 1 Ph |
| Top Platform | ||
| Lifting Capacity | 7,000 lbs (3,175 kg) | 7,000 lbs (3,175 kg) |
| G - Overall Length (Includes Ramps) | 242" (6,139 mm) | 252.25" (6,409 mm) |
| H - Maximum Rise | 139.5" (3,544 mm) | 151.5" (3,849 mm) |
| I - Maximum Lifting Height | 144" (3,667 mm) | 156.5" (3,972 mm) |
| J - Length of Runways | 188.5" (4,786 mm) | 199" (5,056 mm) |
| Min. Wheelbase @ Capacity | 135" (3,429 mm) | 140" (3,556 mm) |
| Min. Wheelbase @ 75% Cap. | 115" (2,921 mm) | 120" (3,048 mm) |
| Min. Wheelbase @ 50% Cap. | 95" (2,413 mm) | 100" (2,540 mm) |
| Min. Wheelbase @ 25% Cap. | 80" (2,032 mm) | 80" (2,032 mm) |
| Bottom Platform | ||
| Lifting Capacity | 9,000 lbs (4,082 kg) | 9,000 lbs (4,082 kg) |
| G - Overall Length (Includes Ramps) | 200" (5,080 mm) | 252.25" (6,409 mm) |
| H - Maximum Rise | 70" (1,783 mm) | 82.25" (2,088 mm) |
| I - Maximum Lifting Height | 75" (1,906 mm) | 87.25" (2,211 mm) |
| J - Length of Runways | 176" (4,470 mm) | 186.75" (4,744 mm) |
| Min. Wheelbase @ Capacity | 125" (3,175 mm) | 135" (3,429 mm) |
| Min. Wheelbase @ 75% Cap. | 105" (2,921 mm) | 115" (2,921 mm) |
| Min. Wheelbase @ 50% Cap. | 85" (2,159 mm) | 95" (2,413 mm) |
| Min. Wheelbase @ 25% Cap. | 70" (1,778 mm) | 75" (1,905 mm) |
| Locking Positions | 31 | 34 |
| Lock Spacing | Every 4" (102 mm) | Every 4" (102 mm) |
| Lifting Time | 90 seconds | 90 seconds (Top), 50 seconds (Bottom) |
Free Shipping and Delivery Terms
Get your BendPak products delivered quickly and affordably! Most items ship free to direct shipping points within the 48 contiguous United States.
Need it shipped somewhere special?
- Rural Areas: If you're in a remote spot, a small surcharge might apply. Just ask us to check your ZIP code!
- Special Services: Need a forklift to unload? Don't have a loading dock? We can handle it, but there might be an extra fee. We also offer residential delivery and other convenient options.
International Shipping? No problem! Contact us for a quote and to arrange the details.
Important Notes:
- Smaller items (under 150 lbs) usually ship via FedEx Ground.
- Accessories and service parts may have separate shipping fees. Contact us for details.
- We choose the best carrier for your area. Want a specific one? There might be a small surcharge.
Have questions about shipping? We're here to help! Contact our team for assistance.
The BendPak Advantage: Quality, Warranty & Support
Free Shipping
Enjoy fast, hassle-free delivery within the contiguous U.S. at no extra cost.
Genuine BendPak Warranty
Enjoy full manufacturer coverage, backed by BendPak's industry-leading support and service network.
Certified BendPak Quality
Every lift is engineered to ALI/ETL safety standards, ensuring premium craftsmanship and durability.
Expert Support & Guidance
As an authorized BendPak distributor, Garage Supply Guys provides expert guidance, ensuring you get the right lift for your needs.
General BendPak FAQs
Do car lifts require maintenance?
BendPak lifts are designed for minimal maintenance. Regular inspections and lubrication are key. Check the owner's manual for your specific model, but typically, monthly inspections of the cables, hydraulic systems, and lubrication points are recommended. This will help ensure optimal performance and longevity.
What are the floor requirements?
A level, structurally sound concrete floor is essential. BendPak recommends a minimum thickness of 4 inches with a PSI rating of 3,000 or greater. The floor should be level within 3 degrees of slope. Proper floor conditions are crucial for the safe and stable operation of your lift.
What's covered under warranty?
BendPak offers a comprehensive warranty for peace of mind. This typically includes: * 5-year structural warranty, * 2-year power unit warranty, * 1-year parts warranty
(Note: Warranty specifics may vary, so always refer to the official warranty documentation for the most accurate information.)
What voltage options are available?
BendPak offers flexibility with voltage options. Most lifts are available in both 110V and 220V configurations to suit your power supply. Be sure to check the specific requirements for the model you're interested in.
Do I need an air compressor?
Yes, an air compressor is necessary for operating the safety lock releases on BendPak four-post lifts. A typical air supply of 30-40 PSI is sufficient.
How do I find a certified installer?
BendPak recommends professional installation for optimal safety and performance. Contact your authorized distributor for a list of certified installers in your area. They can provide expert installation services to ensure your lift is set up correctly.
HD-973P Specific FAQs
Can I use this lift to store a classic car with a longer wheelbase?
Yes, the HD-973P is designed to accommodate various vehicle sizes. By reviewing the wheelbase specifications for each platform, you can determine if your classic car fits within the rated capacity. The platforms can accommodate a wide range of wheelbase lengths, ensuring versatility.
How does the independent platform operation help me in my daily use?
The independent platforms allow you to access any vehicle without moving the others. For example, if you only need to use the middle vehicle, you can lower just that platform, saving time and effort. This is particularly useful in busy environments or when you frequently change which vehicle you need.
Are there any specific considerations for outdoor installation of this lift?
While the HD-973P can be installed outdoors, it's recommended to protect the electrical components from direct exposure to rain and moisture. It is also recommended to ensure proper drainage around the lift. If installing on asphalt, concrete footers are required to ensure a stable base.
What is the benefit of the adjustable lock ladders?
The adjustable lock ladders allow for precise height adjustments, accommodating vehicles of different heights. This flexibility ensures you can maximize your parking space and store a variety of vehicles safely and efficiently, while also allowing for the ability to change the storage order of vehicles.
Is the HD-973P ALI certified?
Yes, HD-973P is certified by the Automotive Lift Institute (ALI) to meet industry safety and performance standard. This certification provides assurance that the lift has been rigorously tested and meet stringent requirements.
