COATS 800MAXX90A Air Leverless Rim Clamp Tire Changer, Maxx 90 w/ Robo-Arm
Sale price$12,654.00Regular price
$13,794.92
COATS | 800MAXX90A | Air Leverless Rim Clamp Tire Changer | Maxx 90 w/ Robo-Arm
800MAXX90A Description

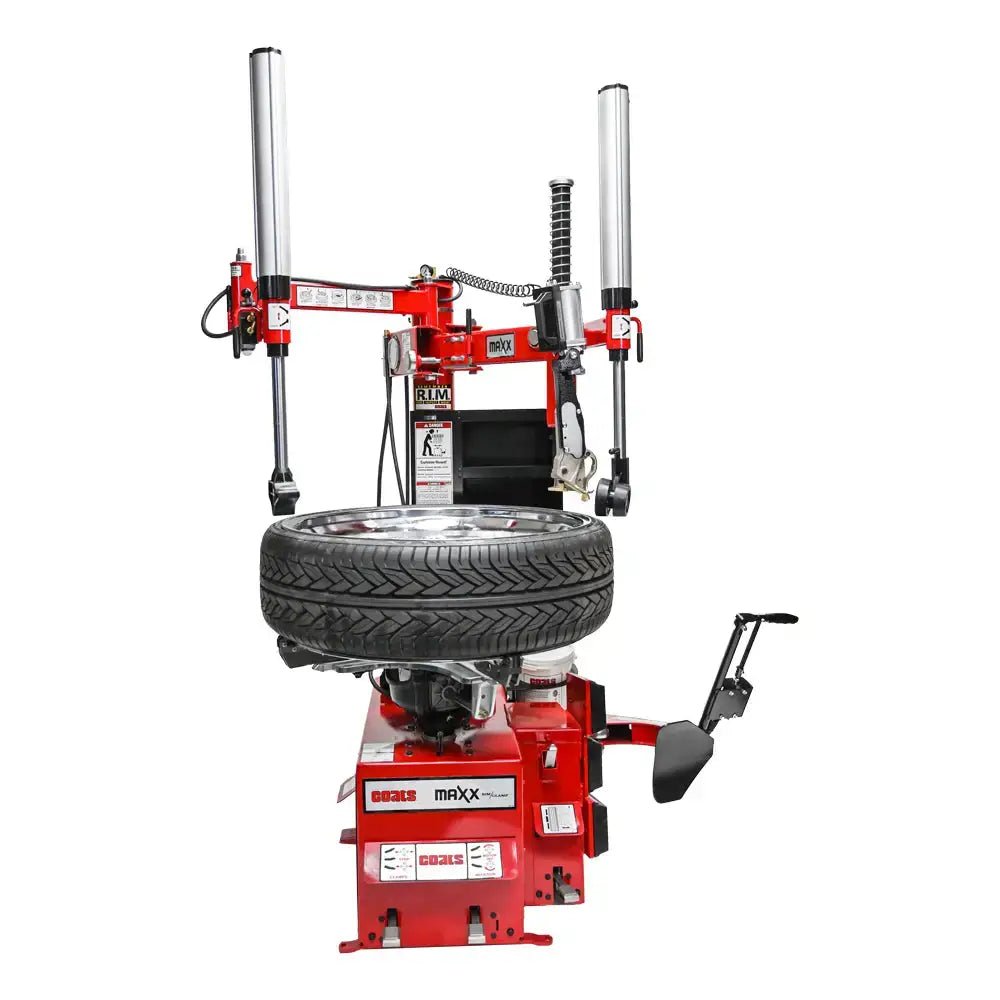

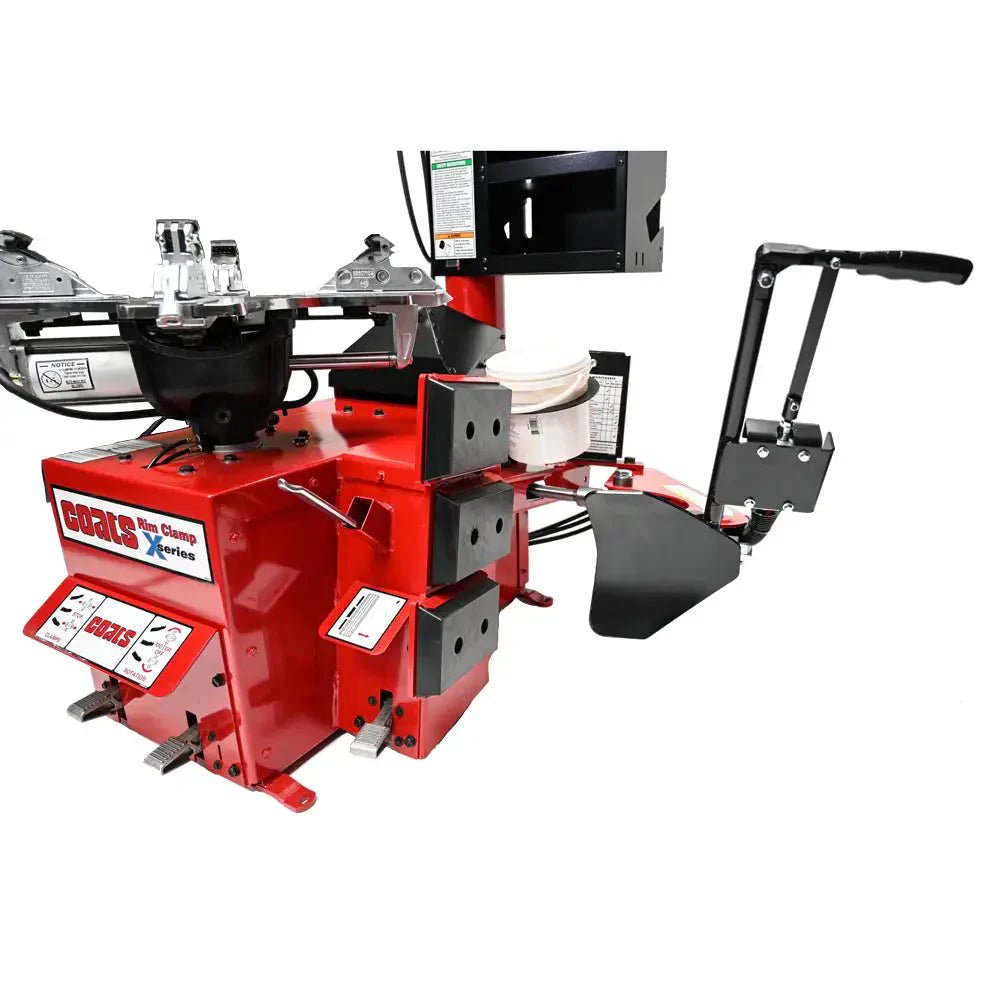

Introducing the Coats Maxx 90 Air Rim Clamp Tire Changer, PN 800MAXX90A – the fastest ground-to-ground tire changer on the market. With rugged construction and an intuitive design, this premium tire changer is built to tackle the toughest and most demanding jobs. The Maxx 90 offers a best-in-class clamping range, handling wheels from 6 to 30 inches in diameter and up to 16 inches wide. Ideal for tire types including OE Passenger, Pickup Truck/SUV, Extreme Performance, Light Duty Truck, Ultra Low Profile, and Run-Flat, this machine is equipped with a dual nozzle bead sealing system for faster inflation and a leverless bead lifter to prevent wheel and tire damage. Perfect for high-volume tire dealers, general repair shops, and street performance shops, the Maxx 90 is powered by a 4.0 HP air motor, making it fast and powerful for even the busiest environments. With a chassis tested up to 250,000 bead-breaking cycles, the Maxx 90 is durable enough to withstand the harshest conditions.
800MAXX90A Features
| Clamping Range | Handles wheels from 6 to 30 inches in diameter and up to 16 inches wide |
| Bead Sealing System | Dual nozzle bead sealing system for quick and efficient tire inflation |
| Bead Lifter | Leverless bead lifter to prevent wheel and tire damage |
| Air Motor | 4.0 HP air motor for high-speed performance in demanding environments |
| Durability | Chassis tested up to 250,000 bead-breaking cycles for unmatched durability |
| Suitable for | OE Passenger, Pickup Truck/SUV, Extreme Performance, Light Duty Truck, Ultra Low Profile, and Run-Flat tires |
| Construction | Rugged construction and intuitive design to handle tough jobs |
| Applications | Ideal for high-volume tire shops, general repair shops, and street performance shops |
800MAXX90A Specifications
| Product Number | 800MAXX90A |
| Clamping Range | 6" - 30" diameter, up to 16" width |
| Motor Power | 4.0 HP air motor |
| Bead Breaker Cycles Tested | 250,000 cycles |
| Tire Types | OE Passenger, Pickup Truck/SUV, Extreme Performance, Light Duty Truck, Ultra Low Profile, Run-Flat |
| Bead Sealing System | Dual nozzle for faster inflation |
| Weight | Approximately 1,300 lbs |
| Dimensions | 81" H x 56" W x 72" D |
