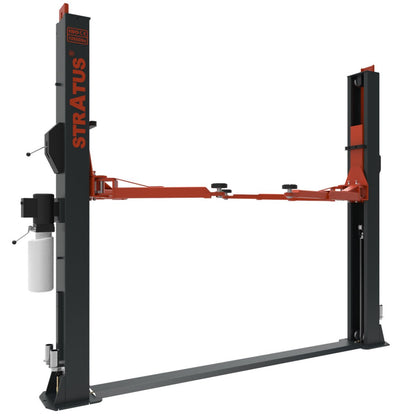

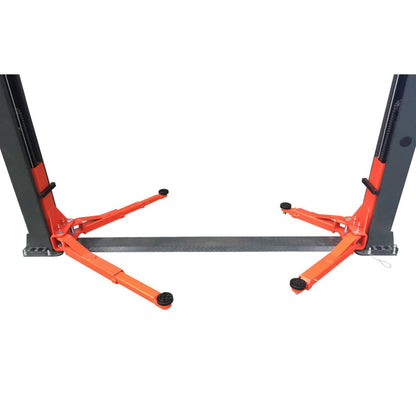

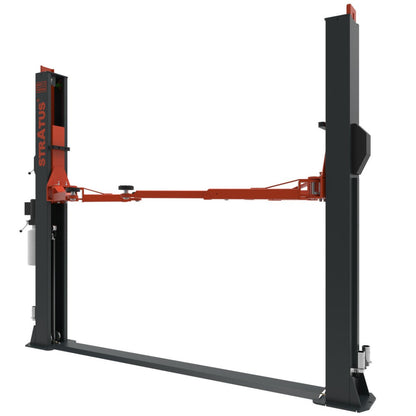

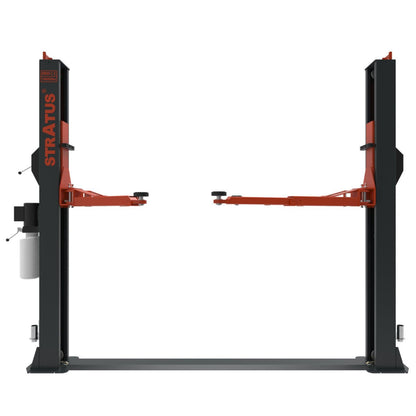

Stratus 2 Post Floor Plate Open Top Vehicle Lift, 10,000 lbs Capacity, SAE-F10S
$3,615.00
Transform the way you handle heavy-duty vehicles with the Stratus SAE-F10S Floor Plate Car Lift. Featuring a two-post open-top design, this lift enhances your vehicle handling capabilities with an impressive 10,000 lbs capacity. The single-point manual release system gives you complete control over every lift and descent with ease. Combining ease of use, reliability, and operational safety, the Stratus 10,000 lbs 2 Post Lift is an essential addition to your workspace. Say goodbye to lifting struggles and experience smooth operations with Stratus.
Important Notes
- A $250 surcharge will be applied to the following states: OR, WA, ID, MT, ND, SD, and ME.
- Buyer is responsible for unloading freight—additional charges apply if unloading exceeds the 30-minute time limit set by freight companies.
- In-house pick-up offers a $350 discount.
Features
- Base plate / open top design
- Single-point manual release
- 4 screw-up rubber pads and 8 truck adapters
- Truck adapter sizes: 1.6" (40mm) & 2.75" (70mm)
- 2 x 2-stage arms and 2 x 3-stage arms
- Multi-strand non-rotary non-stretchy cable
- Top limiter switch
- Stable and reliable with easy maintenance
- Dynamic test with 115% of rated capacity and static test with 150% rated capacity
- Powder-coated finish: Granite Gray (RAL 7026) + Rein Orange (RAL 2004)
Specifications
Capacity: 10,000 lbs
Rise
| Max Lifting Height with Adaptors: | 82 3/4” (2102 mm) |
| Min Lifting Height with Adaptors: | 8 5/16” (212 mm) |
| Max Lifting Height without Adaptors: | 78 3/4” (2000 mm) |
| Min Lifting Height without Adaptors: | 4 5/16” (110 mm) |
| Rise Time: | ~50 seconds |
Outside Dimensions
| Overall Height: | 131 7/8” (3350 mm) |
| Overall Width: | 19 11/16” (500 mm) |
| Overall Length: | 137 3/4” (3499 mm) |
Inside Dimensions
| Inside Columns: | 113 3/8” (2880 mm) |
| Drive Thru: | 101 1/4” (2572.60 mm) |
Arms
| Front Arm Reach Max: | 56 11/16” (1440 mm) |
| Front Arm Reach Min: | 34 5/8” (880 mm) |
| Rear Arm Reach Max: | 48 7/16” (1230 mm) |
| Rear Arm Reach Min: | 26 3/4” (680 mm) |
Power Unit
| Motor: | 3 HP, 220V, 60 HZ, 1PH |
| Oil: | AW32 or AW46 |
| Breaker: | 30A |
Shipping
| Weight: | 1,345 lbs |
| Dimensions: | 113” L x 29” W x 32” H |
Concrete Requirements
| Minimum: | 6” – 3000 PSI |
Warranty
- Limited Warranty – Seller warrants the product’s components to be free from defects in workmanship and materials for the period outlined in the warranty sheet. The warranty is extended solely to the original purchaser and is not transferable. Contact Stratus Auto Equipment for more details.
- Disclaimer of Implied Warranties – Products are sold "as is." The express warranty provided is the sole warranty.
Shipping Information
FREE SHIPPING
- Free shipping to the Continental United States (excluding Alaska and Hawaii). Items typically ship within 5 business days and arrive within 1-2 weeks depending on location.
- Freight shipped via LTL truck to business or residential addresses.
About the Brand
Stratus Auto Equipment was founded after the owner attended racing events and observed racers maintaining their vehicles. Recognizing the need for affordable, high-quality automotive lifts and equipment, Stratus Auto Equipment began offering premium tools to professional mechanics and hobbyists alike. The company focuses on delivering exceptional products at affordable prices, with customer service as a top priority. Stratus has since expanded, with plans for continued growth across the country, always putting their customers first.
